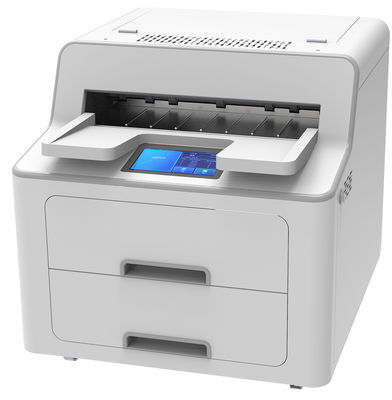

X-ray film Printer Imager

اطلاعات دقیق

محل منبع:

چین

گواهی:

CE, ISO13485

جزئیات بسته بندی:

بسته کارتن

قابلیت ارائه:

1000Set/ماه

توضیحات محصول

KND3600 introduction

Multi-Film Size, Two Magazine Units

Features

· Uses the revolutionary KND-F long-life film which is available in 35 x 43 (14 x 17) and 26 x 36, 20 x 25 (8 X 10) size to meet

diverse demands.

· By adding an optional sheet-feeder unit, the system can implement up to two magazines.

· Extremely compact in design requiring only 0.25 m2 (with small magazine) and an unprecedented

quiet operation.

The KND3600 is a high-speed, high-resolution imager that features all the superior characteristics of imagers, and more.

It is the optimal choice in both small clinical settings and as part of a dispersed system in large hospitals

Specifications

Model	KND3600
Film Type	KND-F
Film Base	Blue
Available Film Size (per hour capacity)	8" x 10" (90) 10" x 12" n.a. 26 x 36cm (75) 35 x 35cm n.a. 35 x 43cm (50)
Format (Portrait)	1, 2, 3, 4, 6, 8, 9, 12, 15, 16, 18, 20, 24, 25, 28, 30, 32, 35, 36, 40, 42, 48, 49, 54, 56, 60, 63, 64, 70, Mix formats
Format (Landscape)	1, 2, 3, 4, 6, 8, 9, 12, 15, 16, 18, 20, 24, 25, 28, 30, 32, 35, 36, 40, 42, 48, 49, 54, 56, 60, 63, 64, 70, Mix formats
Density Adjustment	Automatic
Mammographic Applicability	No
Dimensions (reader unit, mm)	L:595MM W: 665MM H: 597MM
Weight (kg)	85KG
Power Consumption (kW)	1.5
